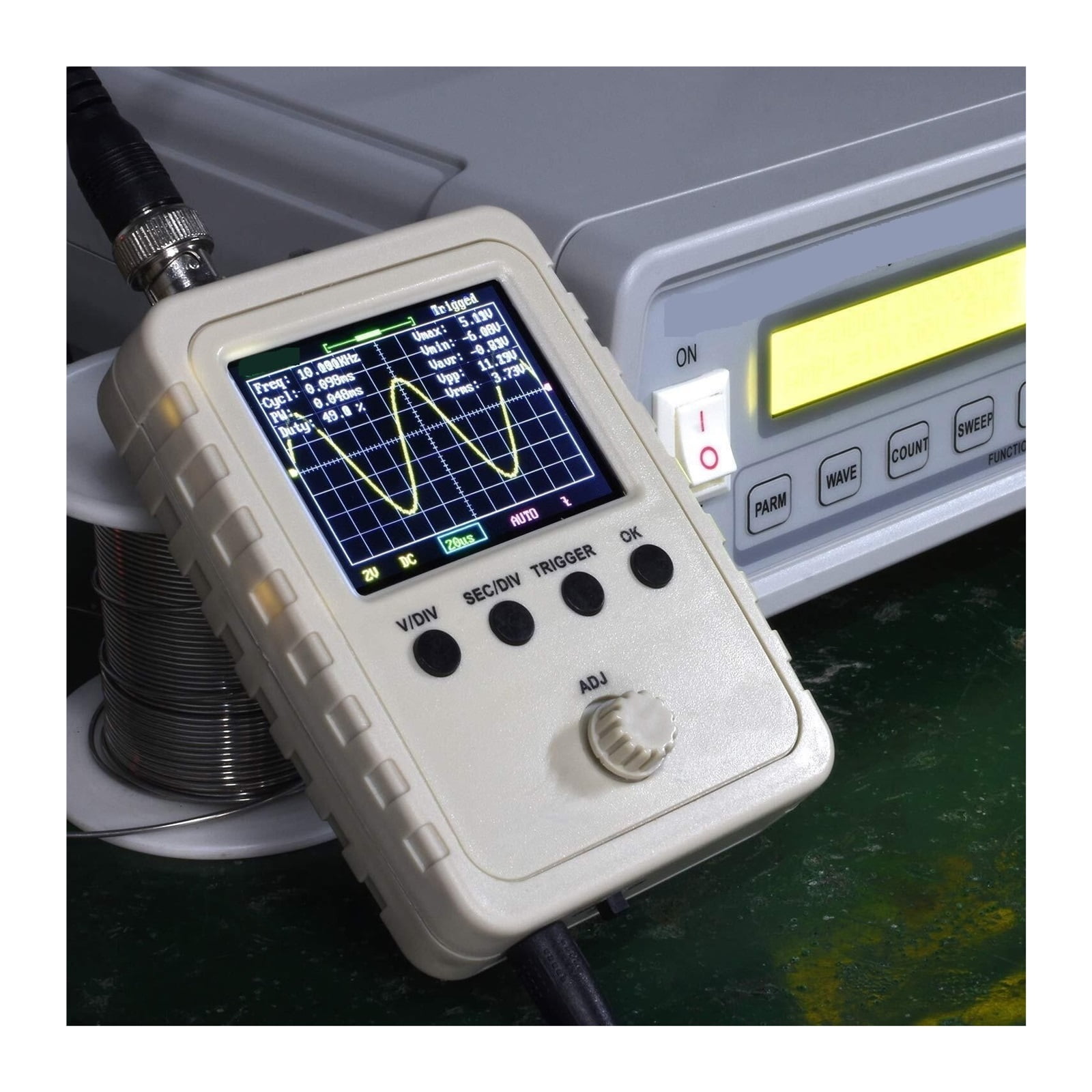

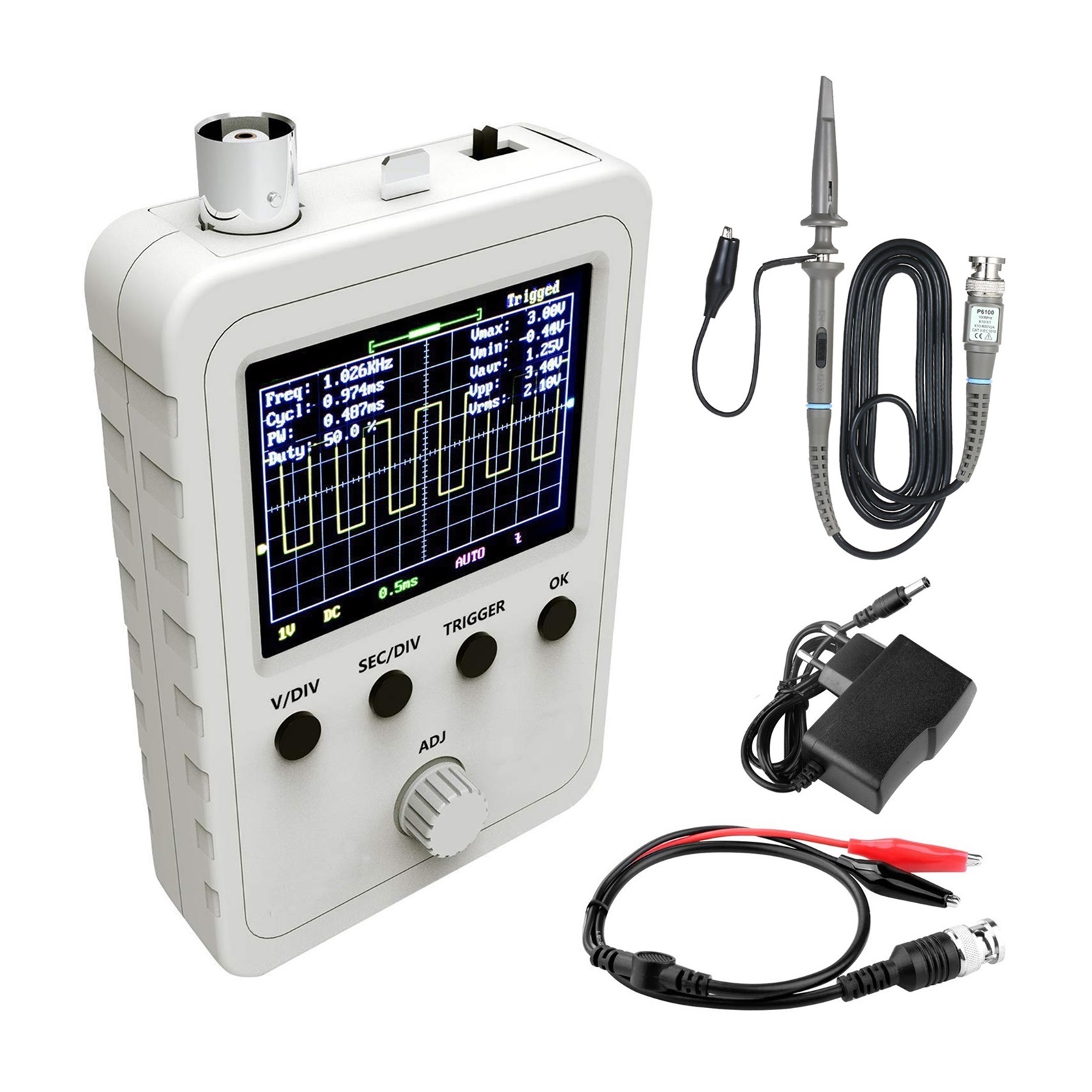

Digital Oscilloscope Kit 0-200KHz Bandwidth and 1M Sampling Rate with Power Supply and BNC-Clip Cable Probe ,Professional Designed

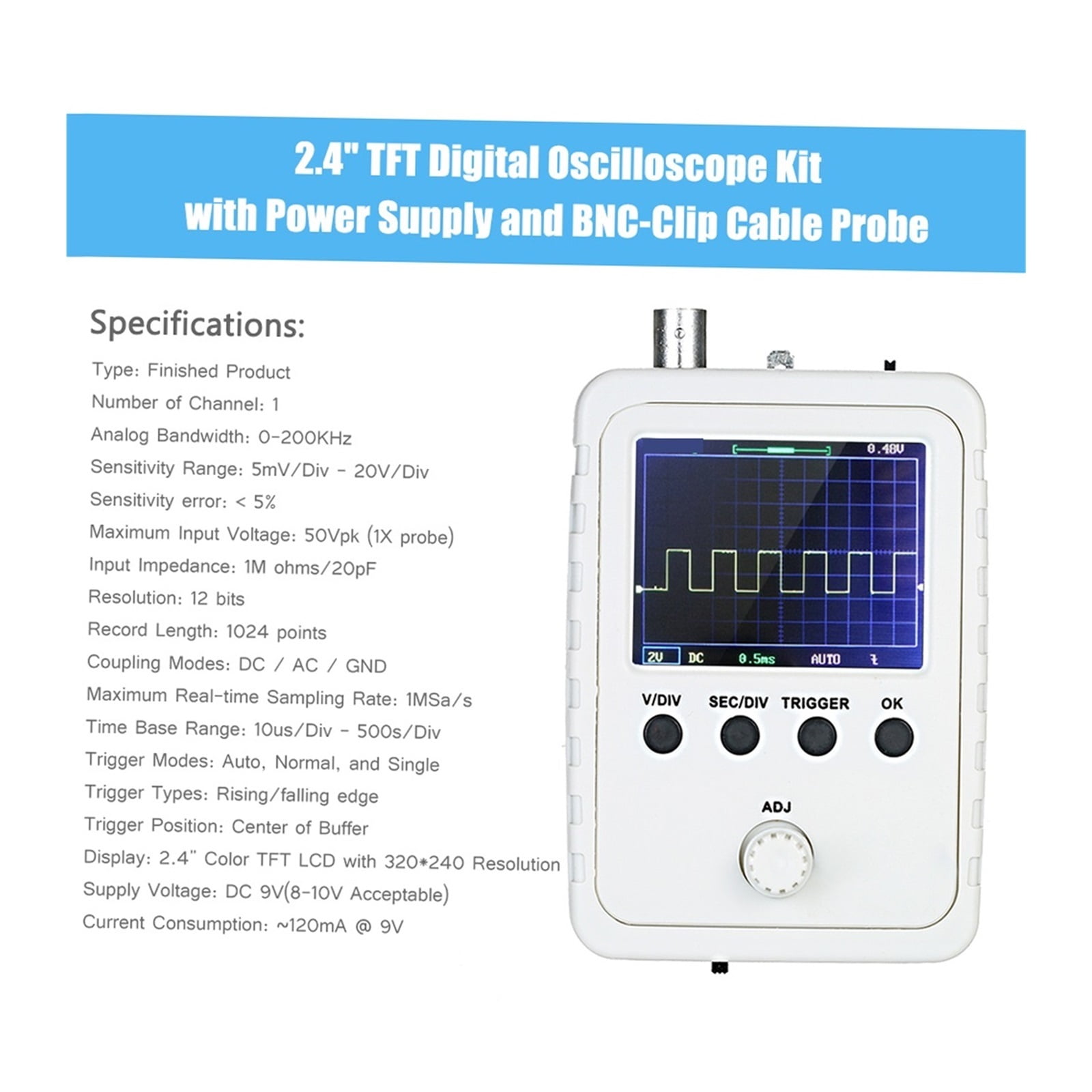

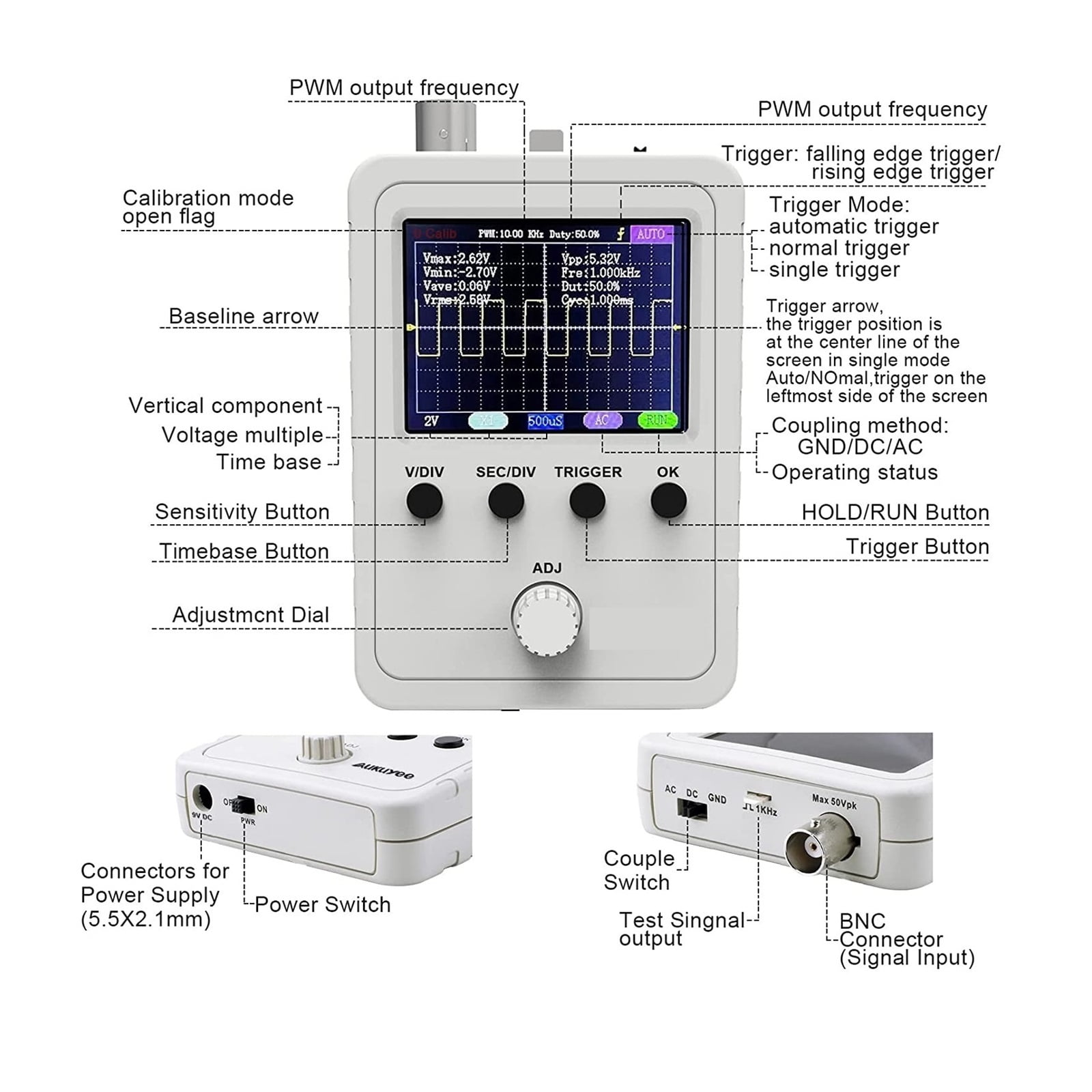

<p>Features:</p><p>Can freeze waveform display at any time (HOLD function).</p><p>Waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.</p><p>Waveform storage function: Will not lose the waveform after powering off.</p><p>Short-circuit and open-circuit detection: Can help the user find out the soldering error.</p><p>controller recognition function.</p><p>More suitable for electronic beginners.</p><p></p><p>Specifications:</p><p>Type: Finished Product</p><p>Number of Channel: 1</p><p>Analog Bandwidth: 0-200KHz</p><p>Sensitivity Range: 5mV/Div - 20V/Div</p><p>Sensitivity error: &lt; 5%</p><p>Maximum Input Voltage: 50Vpk (1X probe)</p><p>Input Impedance: 1M ohms/20pF</p><p>Resolution: 12 bits</p><p>Record Length: 1024 points</p><p>Coupling Modes: DC / AC / GND </p><p>Maximum Real-time Sampling Rate: 1MSa/s</p><p>Time Base Range: 10us/Div - 500s/Div </p><p>Trigger Modes: Auto, Normal, and Single</p><p>Trigger Types: Rising/falling edge </p><p>Trigger Position: Center of Buffer</p><p>Display: 2.4" Color TFT LCD with 320*240 Resolution</p><p>Supply Voltage: DC 9V(8-10V Acceptable)</p><p>Current Consumption: ~120mA @ 9V</p><p></p><p>Note:</p><p>Due to the light and screen difference, the item's color may be slightly different from the pictures.</p><p>Please allow 1-3cm differences due to manual measurement.</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Adopts ARM Cortex-M3 processor, and includes a 2.4-inch color TFT display screen
• Easy to install and operate.
• Auto/normal/single trigger modes, easy to capture the moment waveform.
• Available rising or falling edge trigger.
• Observable previous waveform before trigger (negative delay).
